Hose Race Rite Pro

  • Convoluted exterior with added Spiral Wire increases hoop strength to prevent hose sucking shut under high vacuum.
  • Spiral wire provides an even better bend radius.
  • 50% lighter than our 8400 Series Black Nylon Race Hose
  • Features a true to size I.D. for improved flow rate.
  • Works with all fluids, including Ethanol type fuels, ATF, Coolant, & Oils.
  • Ideal in Dry Sump or High Vacuum Applications.
  • Use with our Race-Rite Crimp-on Hose Ends.
  • Operating range -65°-500°F



Technical Specifications Race Rite Pro

Part No. AN Size Working Pressure Vacuum Rating Min. Bend Radius Weight Per Ft.

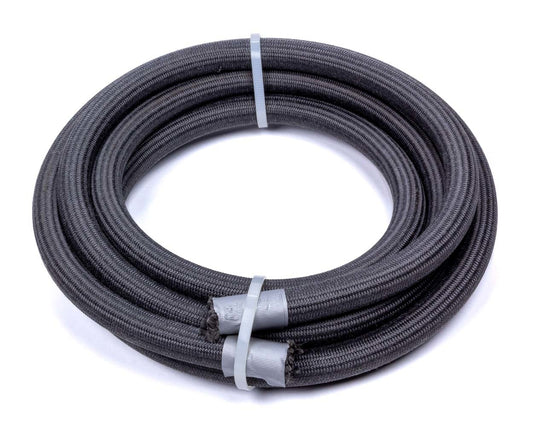

2700006 -6 800 psi. 28 in. hg. 1″ 0.08 lbs

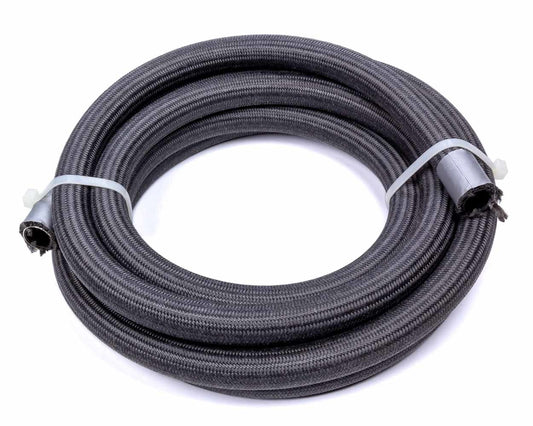

2700008 -8 600 psi. 28 in. hg. 1.5″ 0.12 lbs

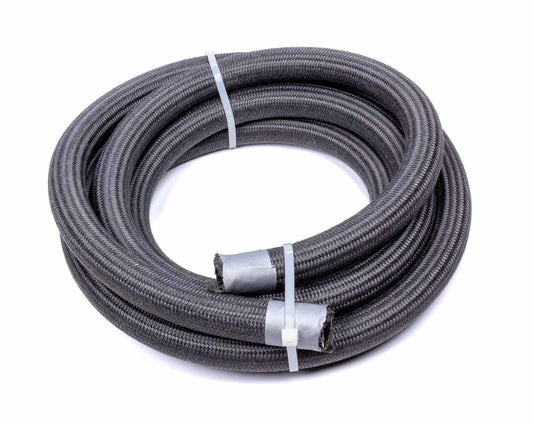

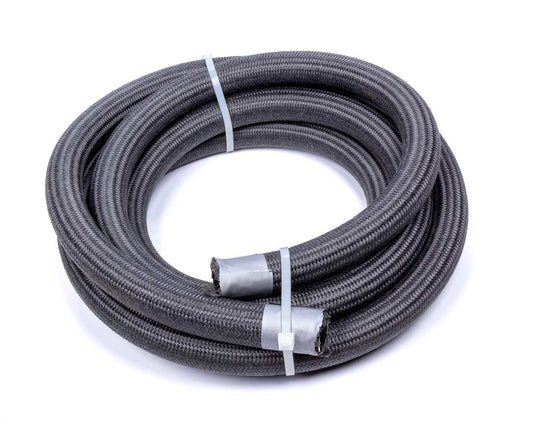

2700010 -10 500 psi. 28 in. hg. 1.75″ 0.17 lbs

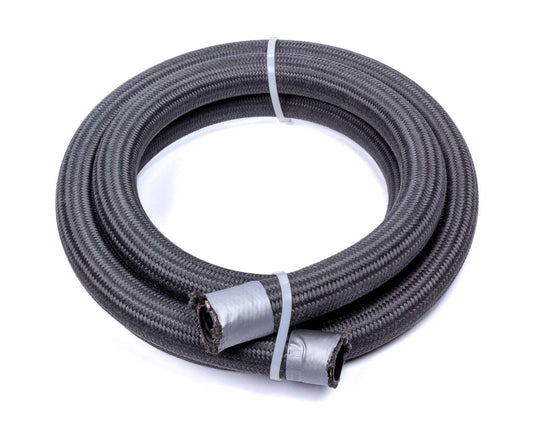

2700012 -12 420 psi. 28 in. hg. 2.25″ 0.21 lbs

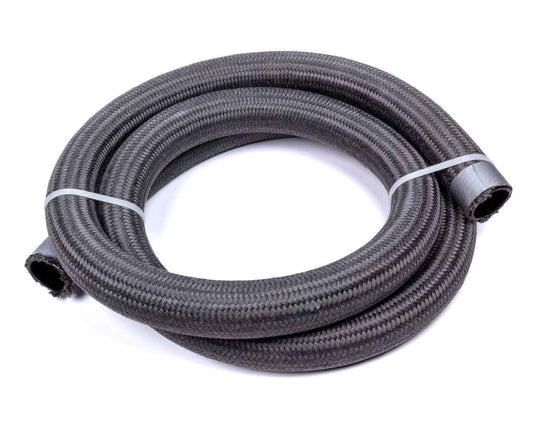

2700016 -16 400 psi. 28 in. hg. 3″ 0.33 lbs
